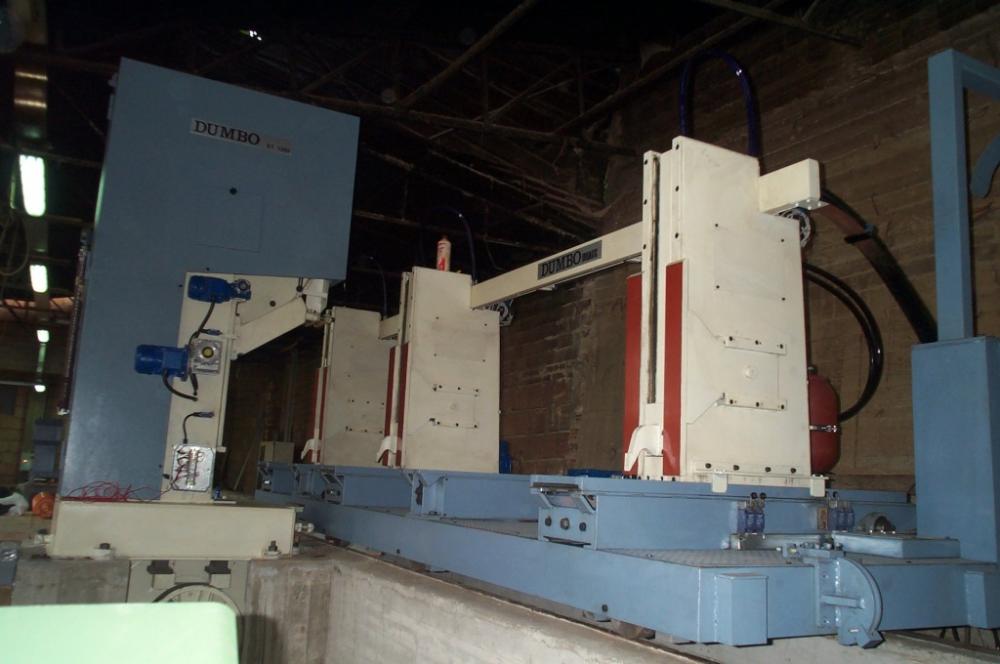

Log Band Saw 1200 Dumbo

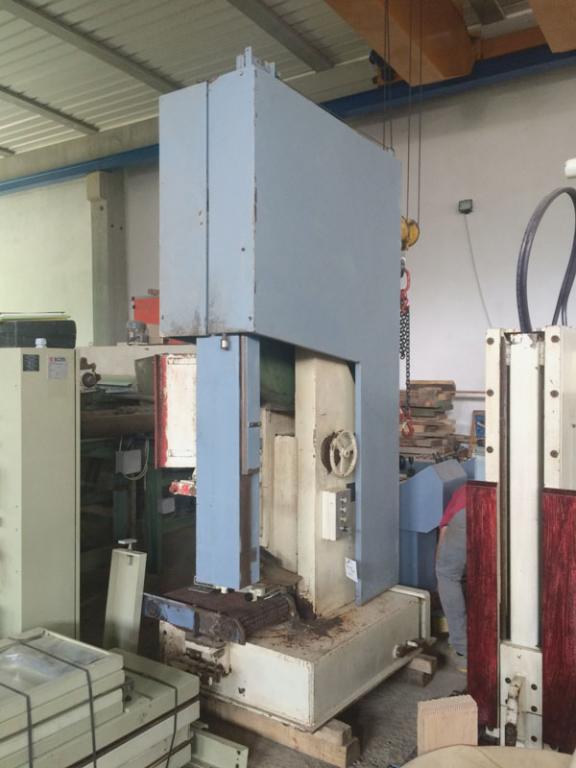

LOGBANDSAW DUMBO 1200 - LEFT  HAND – ANTI-CLOCKWISE

HEADRIG
-    Flywheel diameter mm 1200
-    Flywheel face mm 140 – blade mm 150x1,2x8300
-    Full cast iron balanced flywheels and grinded band
-    Electric/hand inclination of the upper flywheel for adjustment of protrusion of blade
-    Automatic blade-stretcher
-    Multiple chains carpet for boards unloading and cleaning of headrig near
-    Electric motor starter
-    Lubrication by naphta of both flywheels and blade in small basins with absorbent felt placed in the cornerstone of the machine
-    Squared protection carter with safety shield which cover the blade completely in case of emergency or machine blocked.
-    Main motor HP 60 V.380/50 with automatic triangle-row
-    Pulley, belts

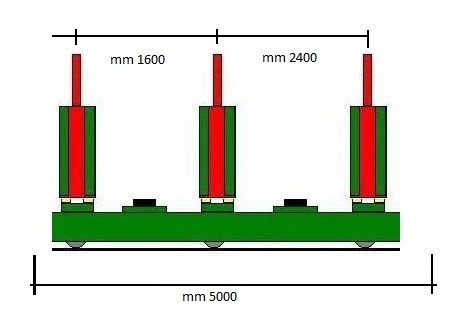

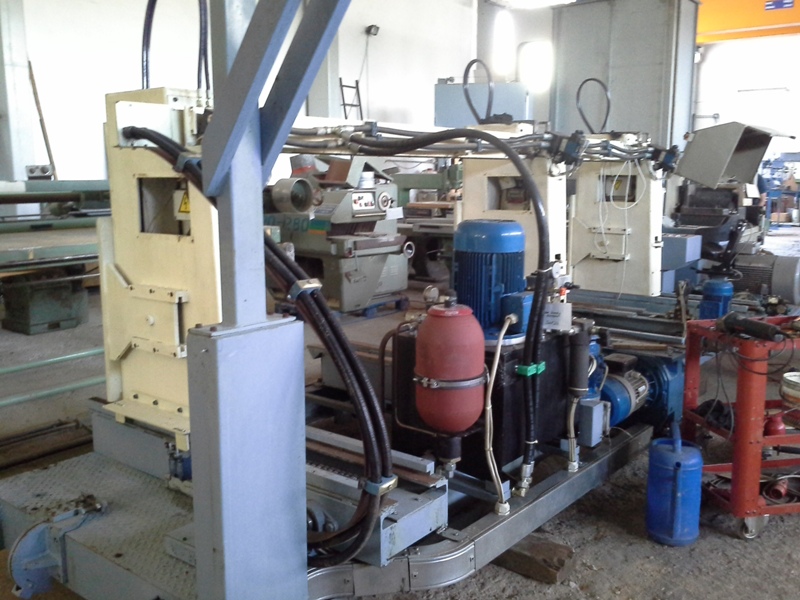

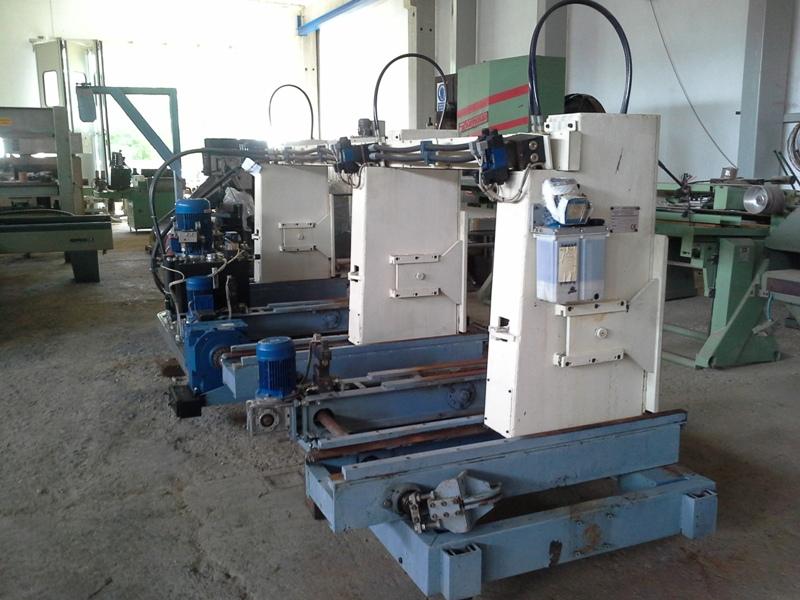

LOG CARRIAGE – HYDRAULIC type Elephant  1300 CEE
-    Three hydraulic grips
-    Max hooks opening mm. 900
-    Hydraulic hooks closing
-    Hydraulic log centrering buffer coincident or singular way
-    “Mudata” electronic thickness divisor linked to axe control: ability to set thickness and cuts programs
-    Nr. 2 electro-hydraulic log-turner chain-arms, inclination up to 90° to make easier log roll and overturning
-    Hydraulic progress with variable speed in continue way
-    Centralized and automatized lubrication system

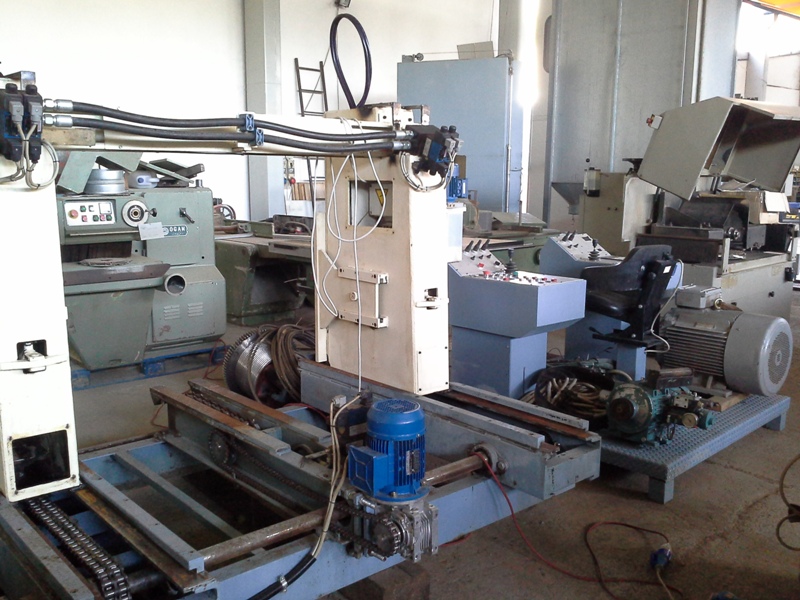

-    Drives board at double station with chair.
-    All operation of the carriage can be driven by two multifunction handlebars. In strategic places  some seats are left free for installation of mechanization of completation of the plant .
-    Electric cables
-    18 mt of plane and profiled rails 8 mt.

Mechanization to joint on request
