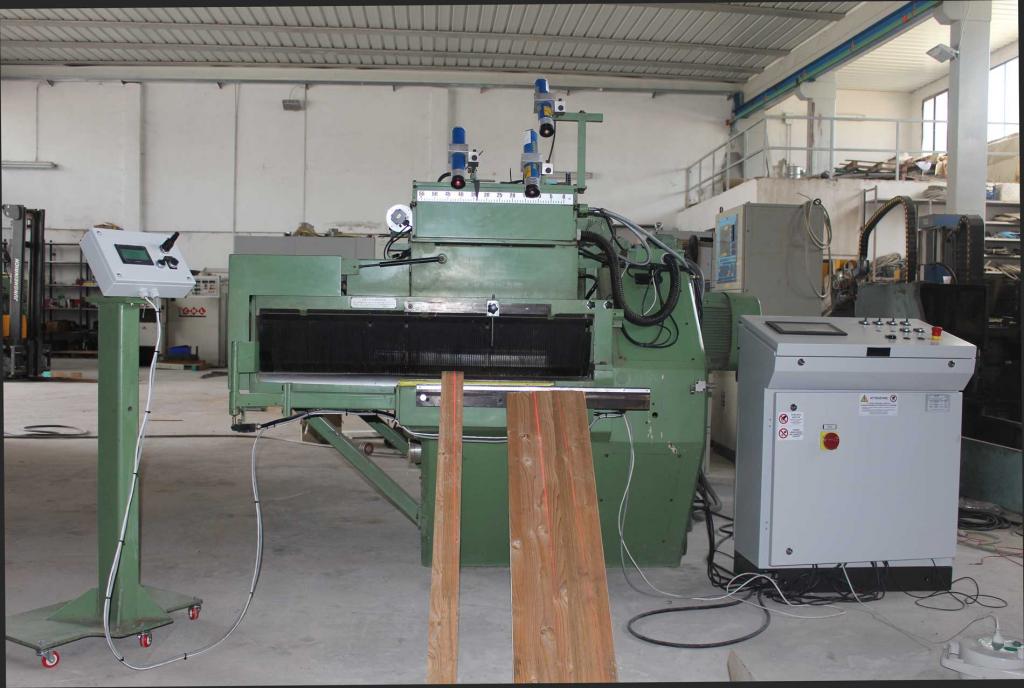

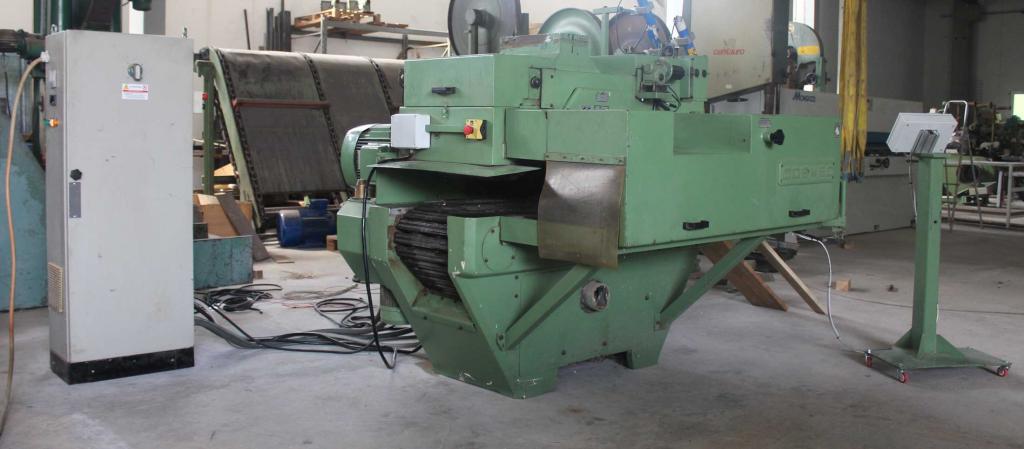

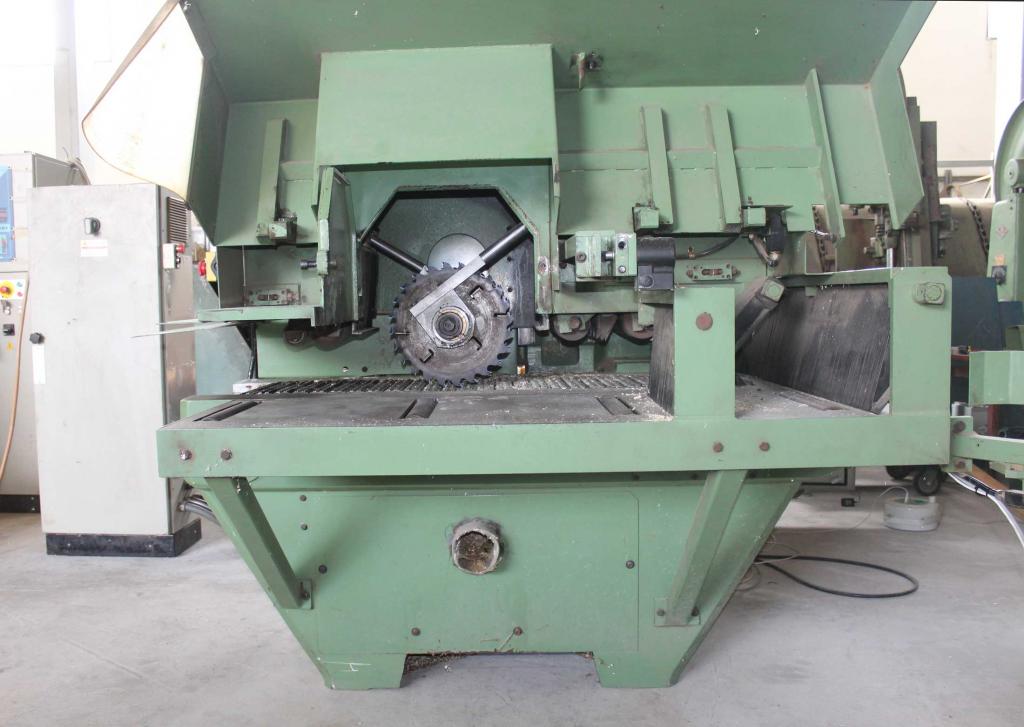

Multirip saw at two moving blades

Technical data

Main motor power 37 kW

Maximum cutting thickness: 140 mm

minimum pieces Length: 550 mm

Width of passage Table: 1000 100 mm

blade diameter 300-400 mm

Hole diameter blades: 70 mm

Rpm blades: 3400 rpm

Maximum outer distance between two blades: 380 mm

Distance center feeding track - column: 290 mm

Belt width: 400 mm

Feed belt speed: 0-36 m / min

Power feed motor: 2.2 kW

Operating table height from the floor: 830 mm

Automatic introducer toothed roller to move the complete piece-clamping system (built in the machine)
