CMS MI 120/EL BUNDLE CUTTER, Year 2000

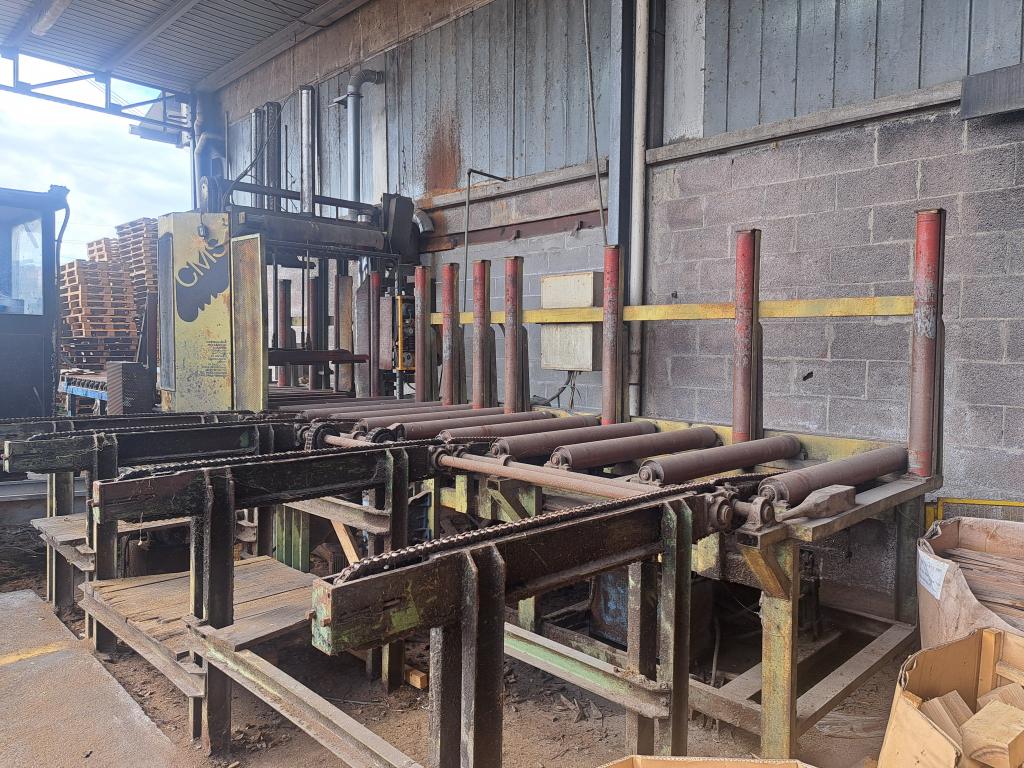

Complete system for cutting bundles of timber to size
Maximum bundle dimensions: 1200 x 1200 mm (H)

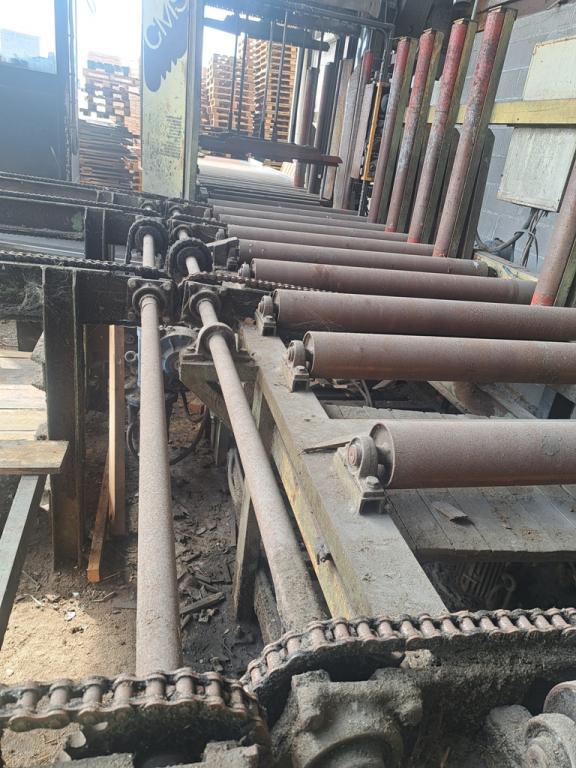

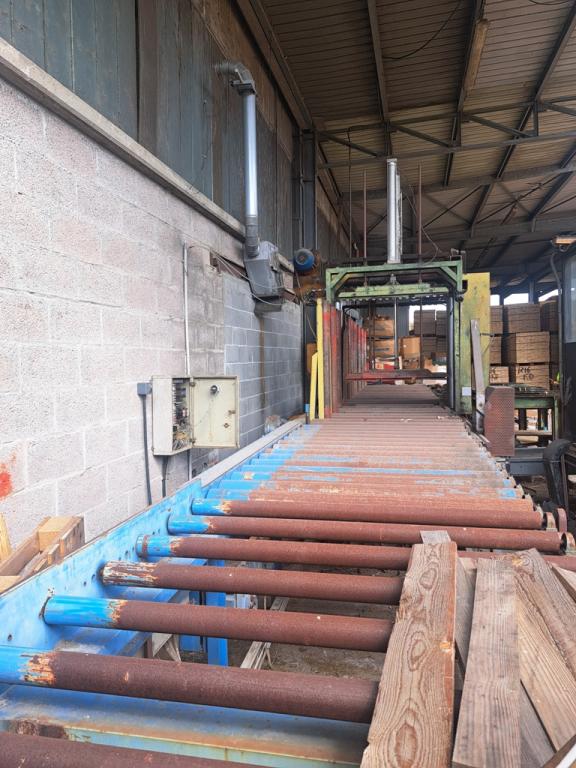

Right-hand infeed roller conveyor, length 4500 mm

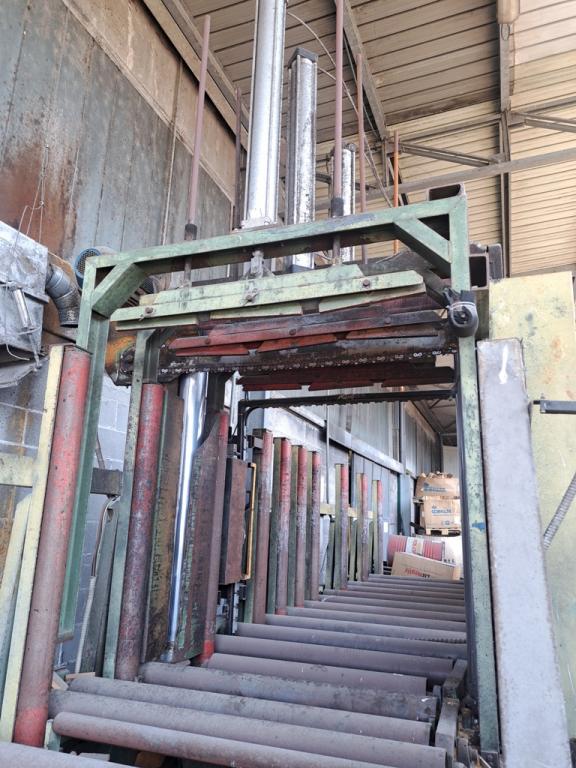

Central cutting unit with HS3/1550 blade and 12.5 HP motor
Raising and lowering with 1.5 HP self-braking motor with inverter
Chain lubrication with hydraulic control unit

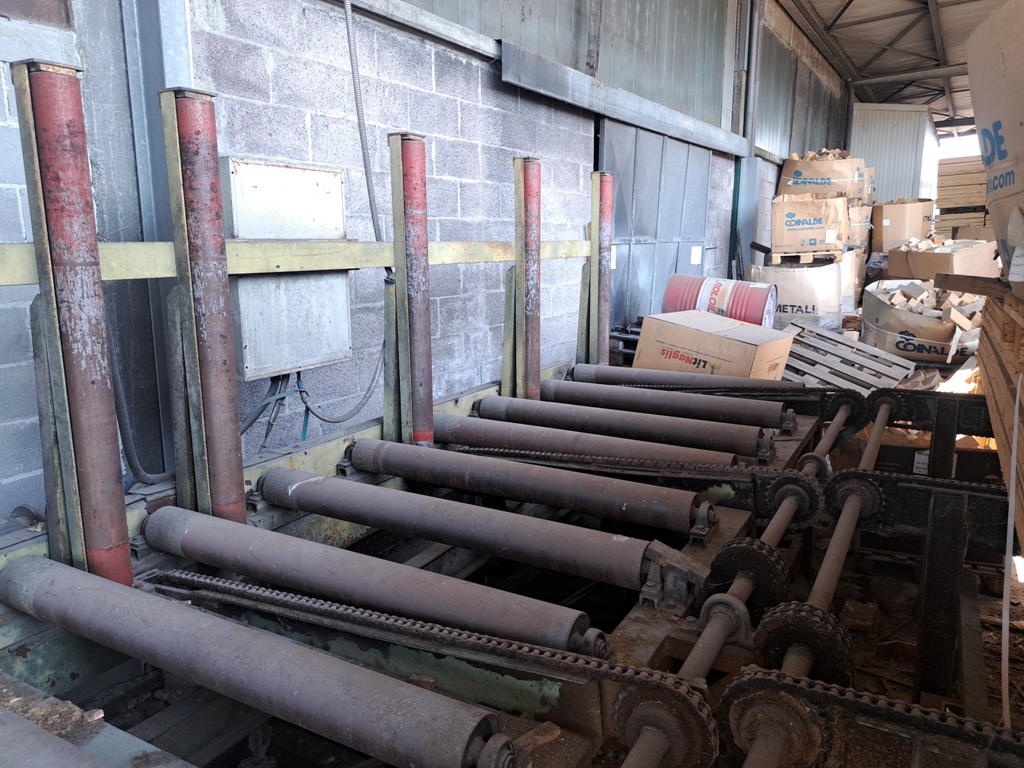

Left-hand outfeed roller conveyor, length 4500 mm, of which 2000 mm with motorized rollers and 2500 mm with idle rollers
1 HP gearmotor

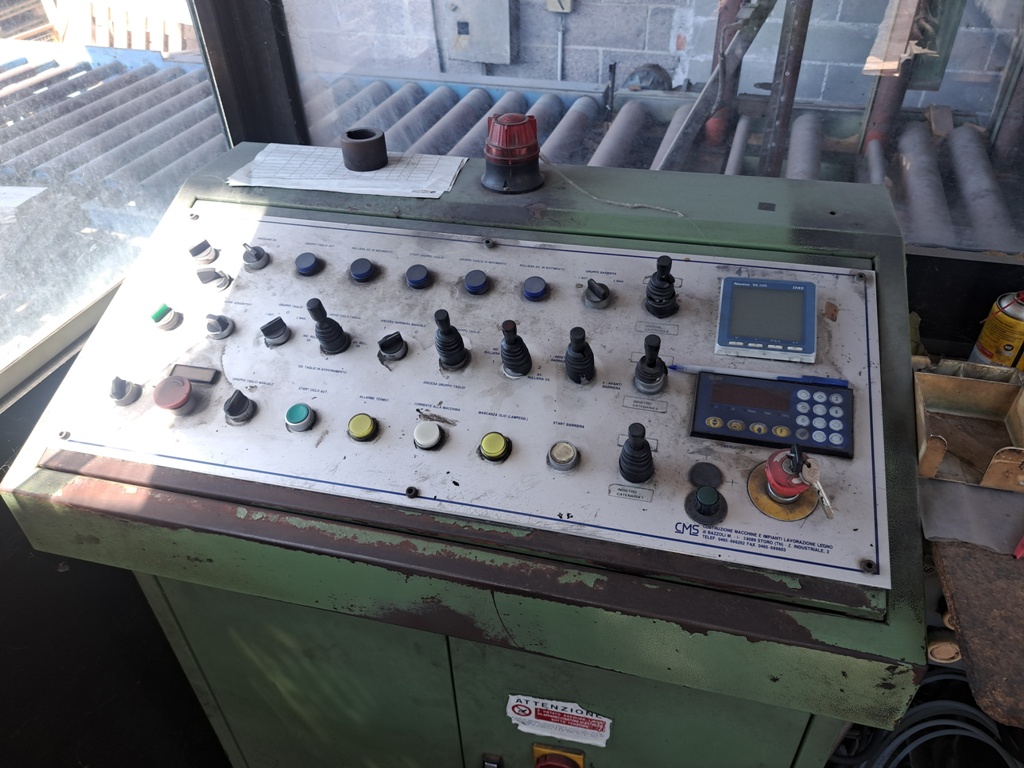

Barrier unit for measuring and programming the cutting dimensions, with a maximum stroke of 2000 mm

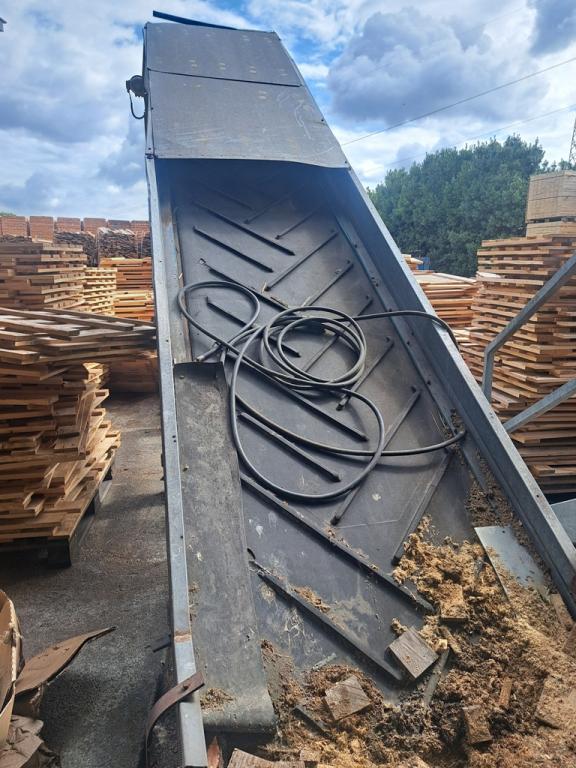

Vinyl belt unit for transporting and removing end-cut and end-cut waste
2 bundle retaining clamps with a stroke of 1000 mm
