Hydraulic sharpener Battilani ZZ for band saws and circular saws

Make:

BATTILANI

Code:

ML03/75B

Description:

*************************  SOLD  **************************

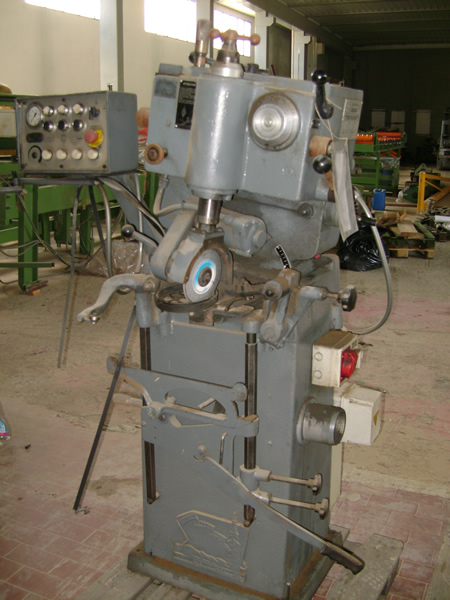

used shapener Battilani zz

Hydraulic sharpening machine for blades
Band saw width: from 15 mm to 250 mm
diameter circular saws. mm 800 - on request up to 1200 mm
tooth pitch: 2 mm to 70 mm
grinding wheel diameter 150 mm - hole diameter 15 mm
depth of tooth from 2 mm to 50 mm
Engine: 2-pole control wheel HP 0.4 - 6-poles command meccanoleodinamic HP 0.6
4 speeds
belt: flat - developing of ring 540 mm - Width 25 mm
Lubricate with ESSO TERESSO 43
(motors built to work up to a temperature of 60 ° plus ambient temperature)
Weight: 320 kg
Overall dimensions: height 160 cm, width 70 cm, length 70 cm



Conditions:

working order

Year:

1997
